■Super Reel Series |
|
|
|
Air Hose Reel |
| Air Hose Reel ARX-10 The hose length is 10m. Install this hose reel for high ceiling work shop.
|

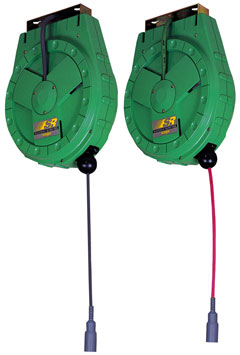

Left：ARX-10、Right：ARX-10T |
| Spatter Protection Hose Reel ARX-10T Use Anti-Spatter Hose. |
|
|
|
|
|
Main Feature |
|||
|
|
|||
|
Special Designed Rachet Function.
Wherever you could adjust the hose length. Also it is very easy to release the lock with our special designed ratchet function. |
 |
||
|
|
|||
|
3 different color
Depends on the working area, you could use the 3 different color reel. |
Green |
Blue |
Gray |
|
|
|||
|

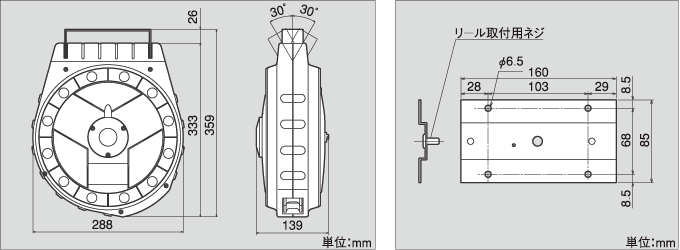

Dementions |
|
|
|
|
|
Dementions |
Size of Support bracket |
|
|
|
|
|
|
|
Specification |
|
Model |
ARX-10 | ARX-10SE | ARX-10T |
| Hose in use | 1/4 ID Polyurethane | 3/8 ID Soft Polyurethane | 1/4 Anti-Spatter Hose |
| Max. Working Pressure | 1.5MPa | ||
| Primary Hose length | 1m | ||
| Secondary Hose Length | 10m | ||
| Weight | 4.1kg | 4.1kg | 4.0kg |
|
The specifications are subject to changed without notice for safety development。 |
|
|
